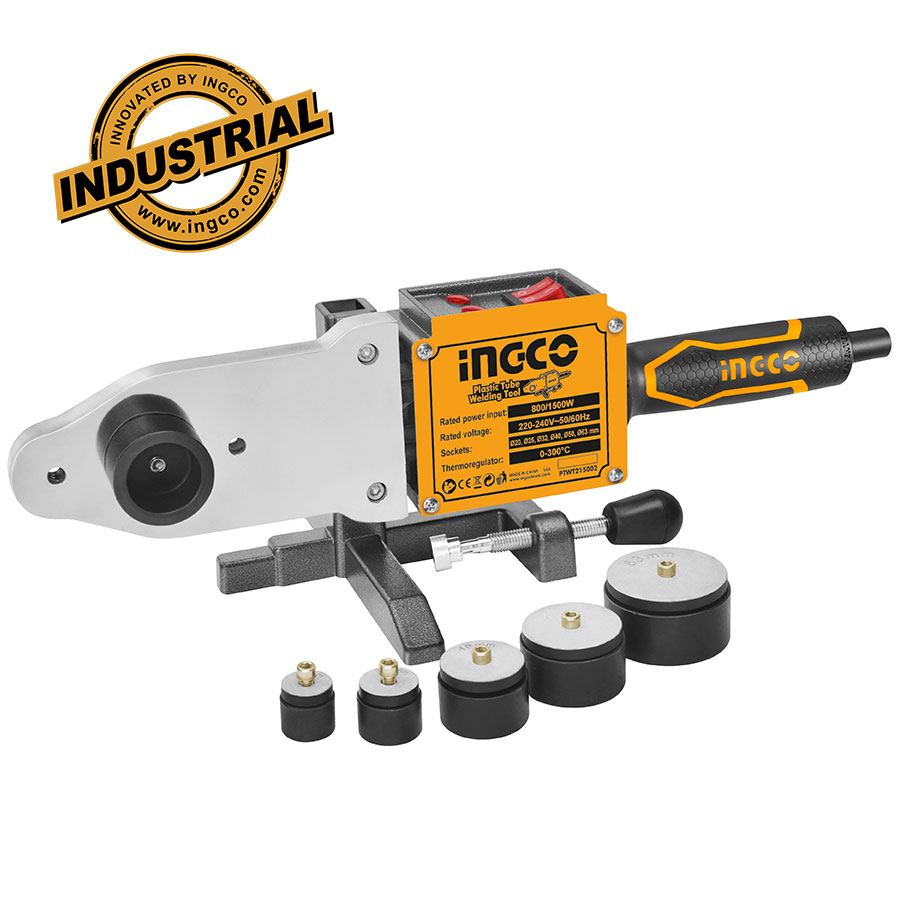

INGCO PROFESSIONAL ELECTRIC HEAT SEALING OF PLASTIC HYDRAULIC PIPES PTWT215002

Trend: 220-240V

Frequency: 50 / 60Hz

Power: 1 speed 800W / 2 speed 1500W

Thermostat: 0-300 ° C

Heating time plastic tube: 5-24 seconds

Welding time plastic tube: 4 -6 seconds

Ambient operating temperature: -20 ° C ~ 50 ° C

Temperature rise time: <15min

Double insulation

Support base

Maintains constant temperature control

Temperature constant temperature and safe to use

The device is ideal for heat sealing polypropylene pipes and other hydraulic and thermal systems (PE-PP-PVC-PVDF).

The device develops power of 1500 or 800 W, with the possibility to choose.

You can also adjust the temperature from 0 to 300 ° C.

The support base has a clamp and can be placed on a workbench or table.

In the heating base there are 3 places that you can put matrices that you will use in your work.

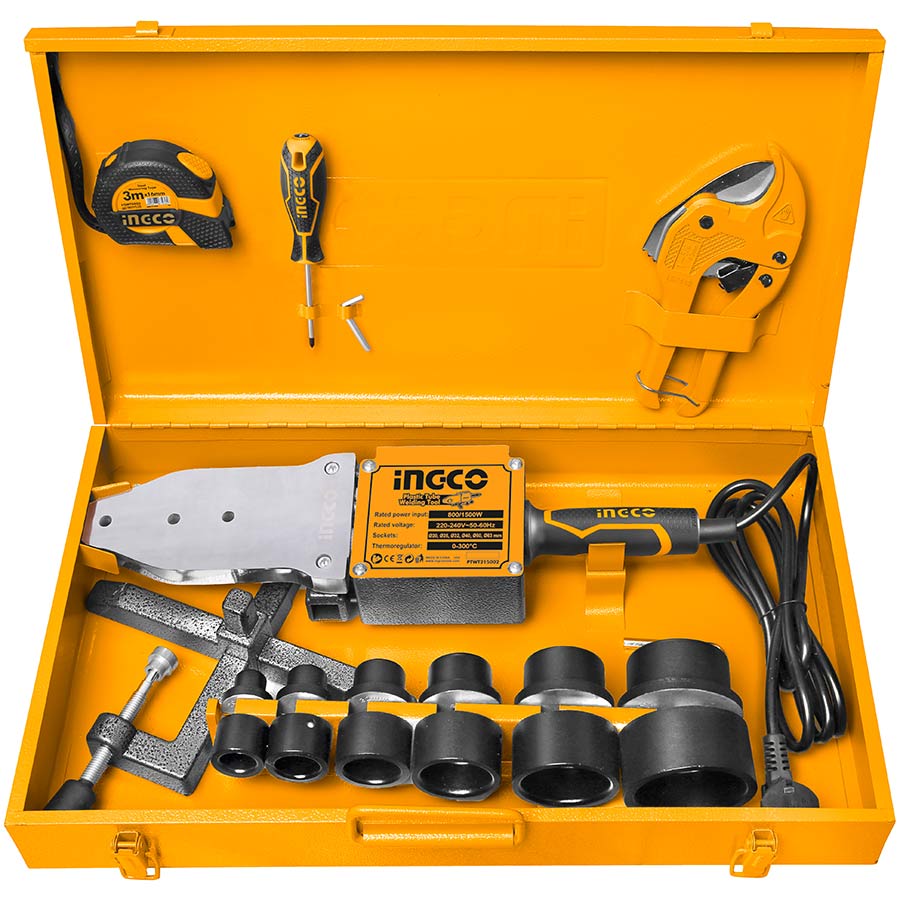

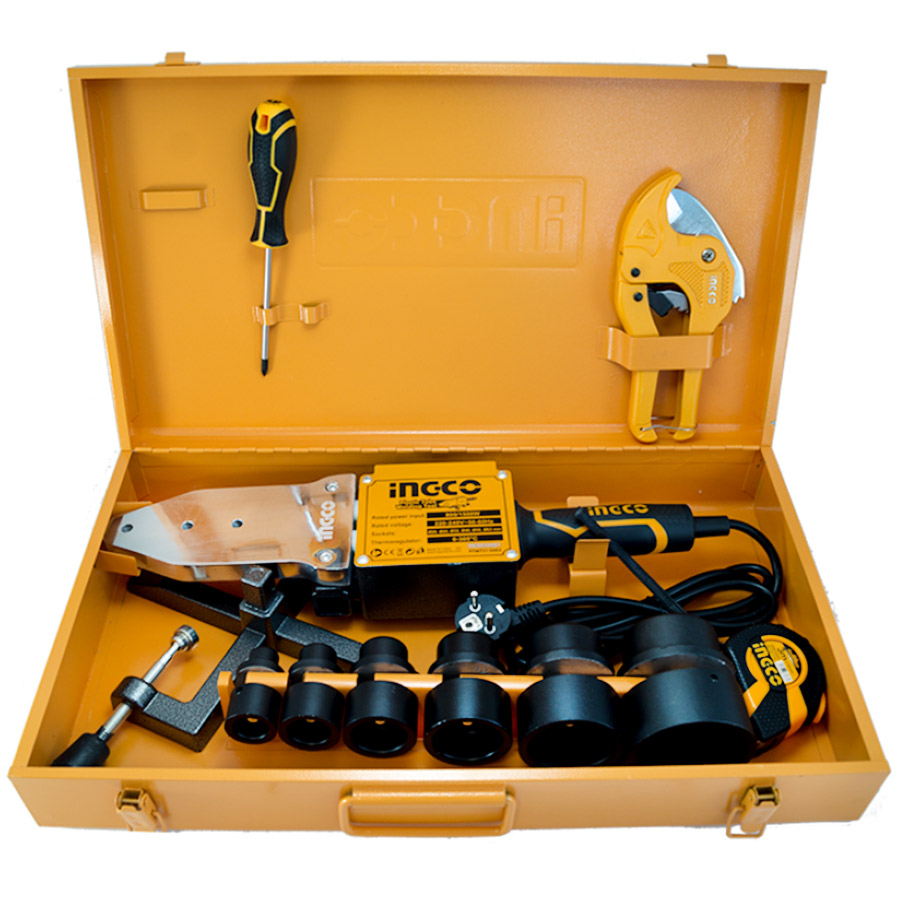

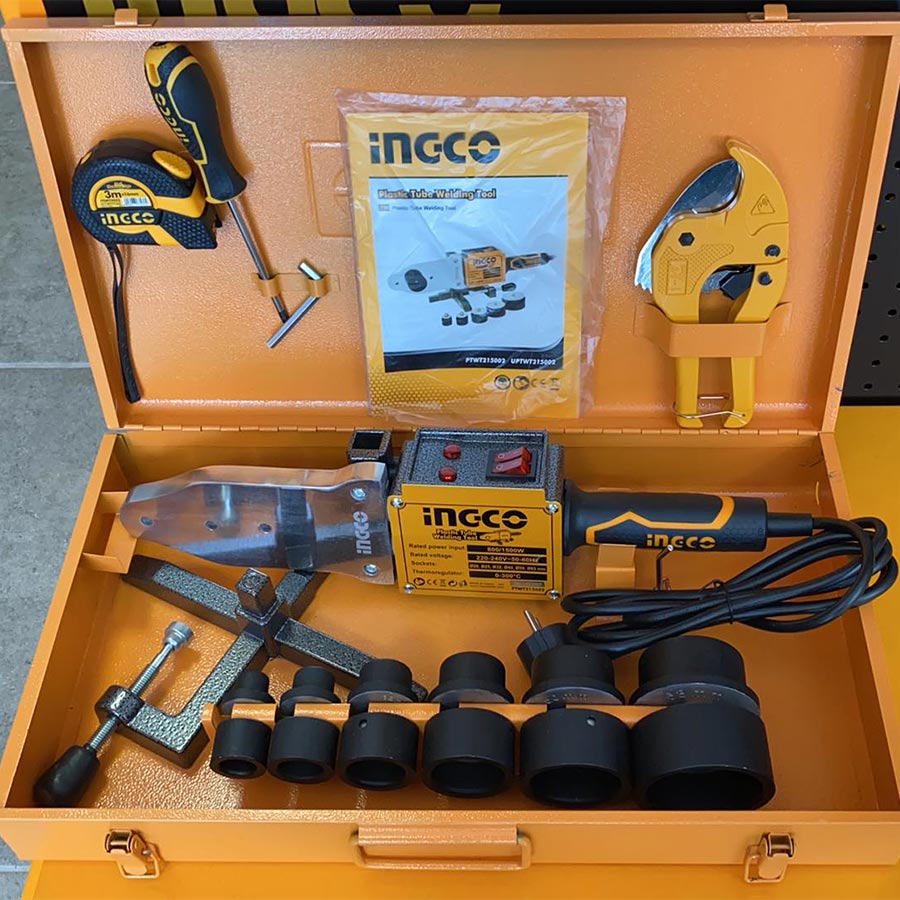

6 pieces Molds 20-25-32-40-50-63mm

1 pieces Tape measure 3m

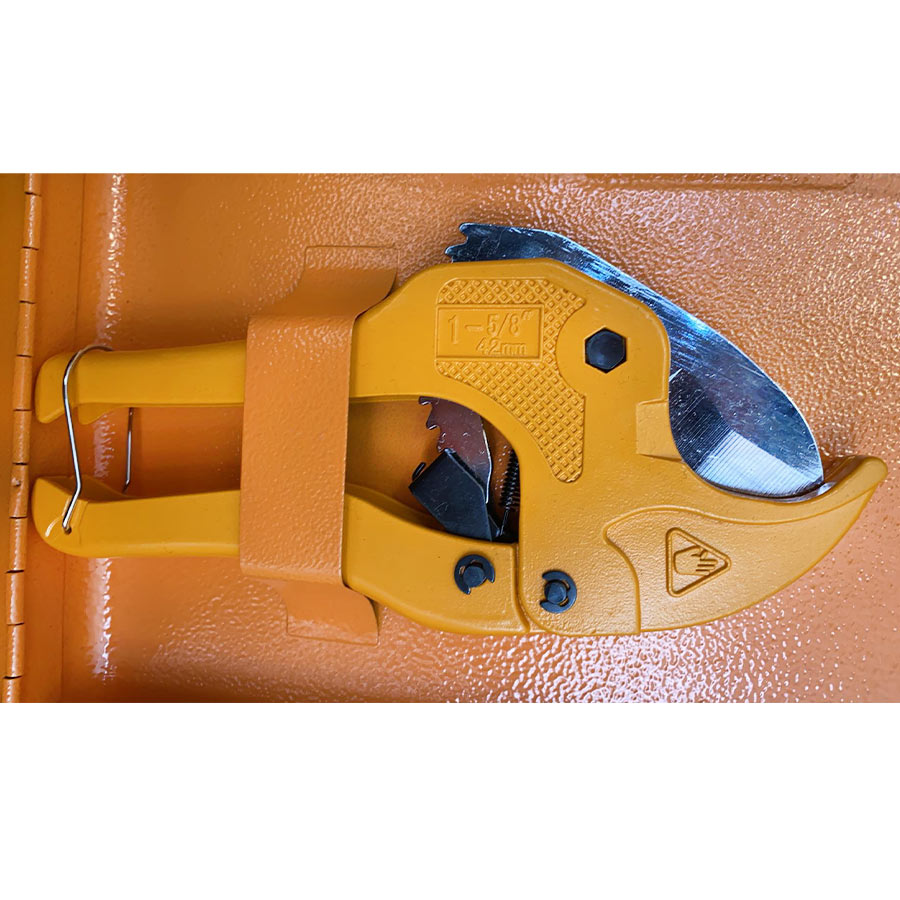

1 pieces Plastic pipe scissors (cutting diameter up to 42mm)

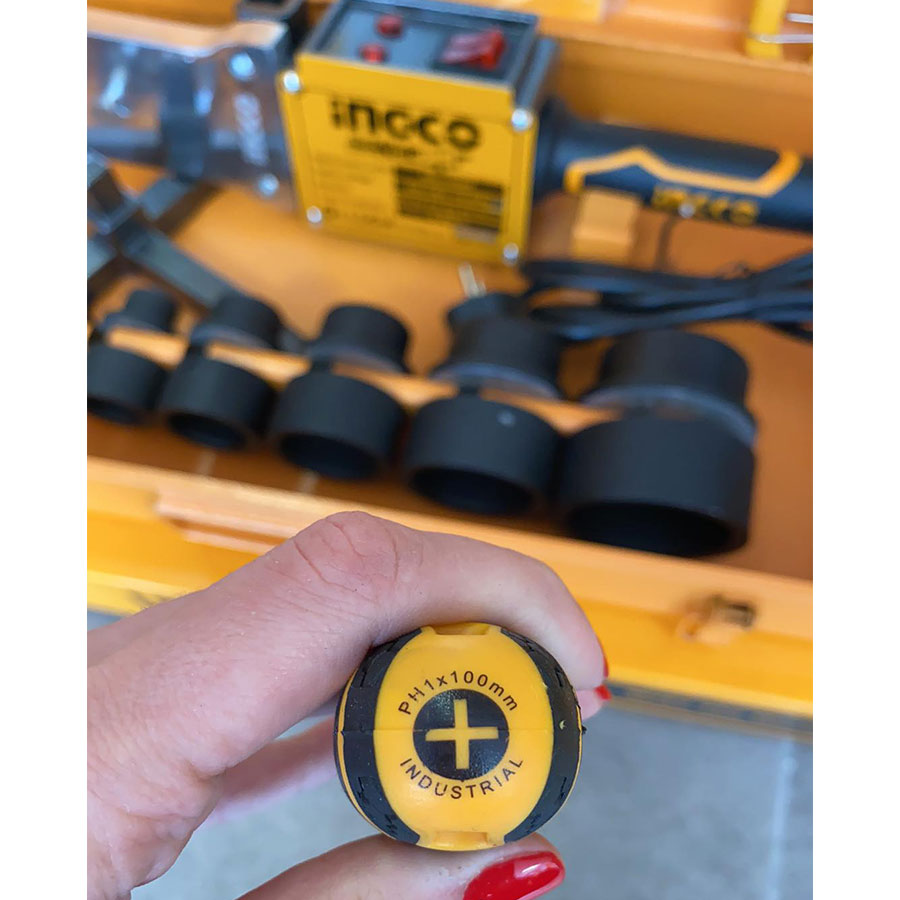

1 pieces Cross screwdriver PH1 x 100mm

1 pieces Allen key Holding base Metal case

Select the appropriate die size depending on the size of pipe you want to weld.

The heating time starts when the pipe and fitting are placed in the welding die.

The welded elements must remain stationary until they cool down for a certain time. Eg: In a plastic pipe with an outer diameter of 20mm, the heating time will be 5 seconds, the welding time 4 seconds and then you have to let it cool for 3 minutes.
